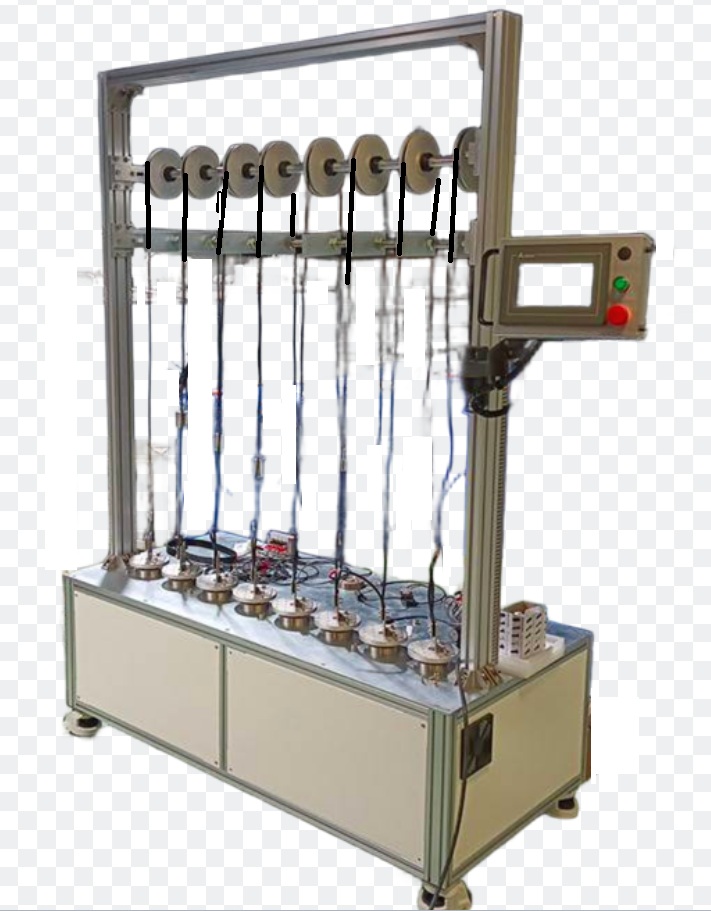

8軸電線繞線測試機
八軸電線繞線試驗機
*利用旋轉機構不停地正/反轉動線材來測試線材耐久度,準確的轉動圈數和速度, 提供了可靠,準確的測試結果.
*在被受測的線材下方可自行更換不同測試砝碼,來測試各個不同的力道對線材造成的影響.
*機器配備八個繞線測試軸,可同時測試不同線材,提高測試效率.
*HMI中文化人機介面,各項測試參數可直接輸入及儲存
特點:
*透過測試設定,可分別對八個線軸設定圈數進行線材測試.
*可設定正反轉每次的圈數,行程速度,停留時間,測試總次數等.
*具斷線檢知功能,可手動及自動偵測迴路是否斷線,並以燈號顯示於人機螢幕.
機器規格
機型 SF-712 外觀尺寸 寬度1500mm x 深度700mm x 高度2000mm 機台主結構 鋁合金架構加板金烤漆 測試行程 ±360度, 最大化±720度 驅動馬達 AC伺服馬達 圓盤尺寸 130mm 治具夾尺寸 長度75mm x 寬度50mm x 高度80mm 使用電源 AC 220V 控制方式 透過PLC及人機設定操作控制 機器重量 200kgs 備註: 上述機器規格僅供參考, 本公司保留修改的權利恕不預先通知
-
8 Axles Electric Wire Cable Winding Test Machine
8 Axles Electric Wire Cable Winding Test Machine
*By rotating mechanism to turn the fixed electric wire cable forward / backward continuously to test durability of wire cable from setting accurately times of rotating circles and speed, in order to provide reliable, precise testing result.
*Under each tested wire cable, it is able to change different testing weight, to apply different forces and made influence for each tested wire cable.
*Machine equipped with 8 pcs wires cable winding test axles, it is able to test different wire cable at the same time, to enhance testing efficiency.
*With HMI human machine interface, capable of input and saving each tested data value directly.
Characters :
*By test setting, it is able to set the numbers of testing circles, to test 8 axles wires cables respectively.
*It is able to set numbers of forward backward rotating circles each time, stroke speed, stopped time, numbers of total tested times.
*With detecting function during wires was broken, it is able to detect loop manually and automatically if wire cable was broken, and also to display it by light on HMI screen.
Machine Specification
Machine model SF-712 External dimension Width 1500mm x Depth 700mm x Height 2000mm Machine structre Aluminum alloy machune frame, painted metal sheet Test stroke ±360 degree, max. ±720 degree Driving motor AC Servo motor Testing disc diameter 130mm Fixture dimension Length 75mm x width 50mm x height 80mm Power supply AC 220V Control method By PLC and HMI operation control Machine weight 200kgs Remarks: above machine specification just for reference only, manufacturer keep the rights to change it without notice in advance.
